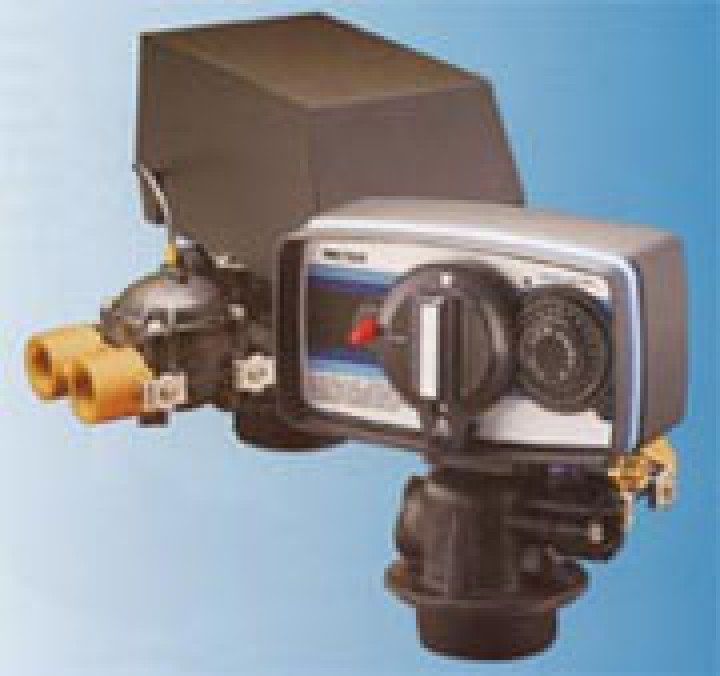

Fleck 5600
Learn more about the Fleck 5600 system for your home in Cypress, TX and surrounding areas
5600 / 1600 FP Time clock
Econominder (metered)
- Simple mechanical design is easy to understand. Two valve body designs, one for downflow regeneration and one for upflow, cover every valve in the 5600 family – quick access to all internal components.
- Injector/drain modules containing the brine valve, flow controls and injector are removable from the valve’s exterior.
- Ruggedly built timer is designed with heavy duty 3/8″ wide plastic gears.
- 5600 controls are user friendly and easy to program.
- Non-corrosive, UV resistant Noryl® valve body.
- Choice of 7 or 12-day time clock or demand regeneration with either mechanical or electronic meter.
Fleck® is a trademark of Pentair, Inc.
Options
- Bypass valve (Noryl® or lead free brass)
- Backwash filter
- Upflow regeneration
- 35 day timer
- 1″ inlet/outlet
- Low water use piston (uses as little as 29 gal/regeneration)
- 90° adapter coupling (Noryl®)
- 90° angle yoke (lead free brass – 3/4″ sweat or 3/4″ NPT)
VALVE SPECIFICATIONS
Valve Specifications
| Valve Material | Noryl® |
| Inlet/Outlet | 3/4″ NPT (Female) |
| Cycles* | {enter info} |
FLOW RATES (50 PSI INLET) – VALVE ALONE
Flow rates (50 PSI Inlet) – Valve Alone
| Continuous (15 PSI Drop) | 20 gpm |
| Peak (25 PSI Drop) | 26 gpm |
| CV** | 5 |
| Max.Backwash (25 PSI Drop) | 7 gpm |
REGENERATION
Regeneration
| Downflow/Upflow | Both |
| Adjustable | Time of regen and brine flow only. |
| Time Available | 120 minutes |
METER INFORMATION
Meter Information
| Meter Accuracy Range | .25 – 15 gpm +/- 5% |
| Meter Capacity Range | Standard: 125-2,125 gal. Extended: 625-10,625 gal. |
DIMENSIONS
Dimensions
| Distributor Pilot | 13/16″ or 1″ (1.050) Pipe O.D. |
| Drain Line | 1/2″ NPT (Female) |
| Brine Line | 3/8″ |
| Mounting Base | 2-1/2″-8 NPSM |
| Height from top of tank | 7″ |
TANK APPLICATION – CAN REGENERATE/BACKWASH THE FOLLOWING
Tank Application – can regenerate/backwash the following
| Water Softener | 6″-12″ diameter |
| Iron Filter | 6″-10″ diameter |
| Sediment Filter | 6″-10″ diameter |
| Carbon Filter | 6″-10″ diameter |
| Neutralizing Filter | 6″-10″ diameter |
ADDITIONAL INFORMATION
Additional Information
| Electrical Rating | 24v, 110v, 220v-5-Hz, 60Hz |
| Pressure | Hydrostatic: 300 PSI Working: 20 – 120 PSI |
| Temperature | 34° – 110° F |
**Cv-Flow rate of valve alone at 1 psi pressure drop
